In this post, I am covering how to use the MySQL ROW_NUMBER() window function and an CASE expression to collapse multiple rows of data into a single row per group.


Thanks for reading OpenLampTech! Subscribe to the free weekly newsletter for all the great original and curated PHP/MySQL content I share in the publication.


Data set up

In order for a more manageable set of data to work with, I am filtering the sakila database ‘city’ table for any rows whose country_id value is in the list of (26,27,28,29) using the IN() operator:

SELECT country_id, city
FROM city
WHERE country_id IN (26,27,28,29);

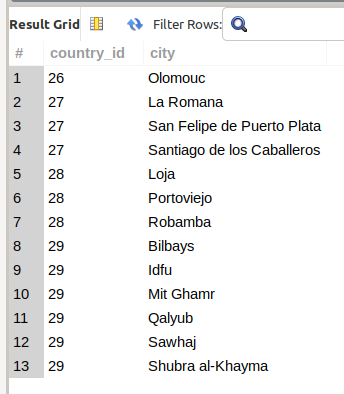

Sakila city table rows with country_id columns

ROW_NUMBER() window function

In this Common Table Expression (CTE), the ROW_NUMBER() window function assigns an incrementing INTEGER value to each row in the result set. Since the PARTITION BY clause is present, sub-groups are formed based on the unique country_id column values and we are assigning order based on the ORDER BY city ASC clause:

WITH data_set AS (
SELECT country_id,
city,
ROW_NUMBER() OVER(PARTITION BY country_id ORDER BY city ASC) AS rn
FROM city
WHERE country_id IN (26,27,28,29)
)

SELECT * FROM data_set;

Notice ROW_NUMBER() resets the incrementing INTEGER value for each distinct country_id sub-group.

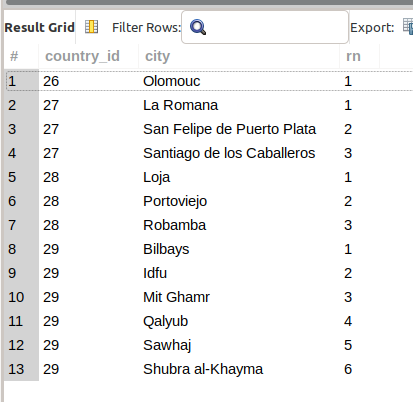

MySQL query results for rows base on ROW_NUMBER()
Query results with ROW_NUMBER() window function value.

Support OpenLampTech, my blog, and my work with a coffee if you would like.☕


CASE expression and NULLs

Next, we use a CASE expression and retrieve each city column value based on what the rn alias value is. In those instances where the WHEN predicate is not true, NULL is returned for that city column value:

SELECT country_id,
CASE WHEN rn = 1 THEN city ELSE NULL END AS city_1,
CASE WHEN rn = 2 THEN city ELSE NULL END AS city_2,
CASE WHEN rn = 3 THEN city ELSE NULL END AS city_3,
CASE WHEN rn = 4 THEN city ELSE NULL END AS city_4,
CASE WHEN rn = 5 THEN city ELSE NULL END AS city_5,
CASE WHEN rn = 6 THEN city ELSE NULL END AS city_6
FROM data_set;

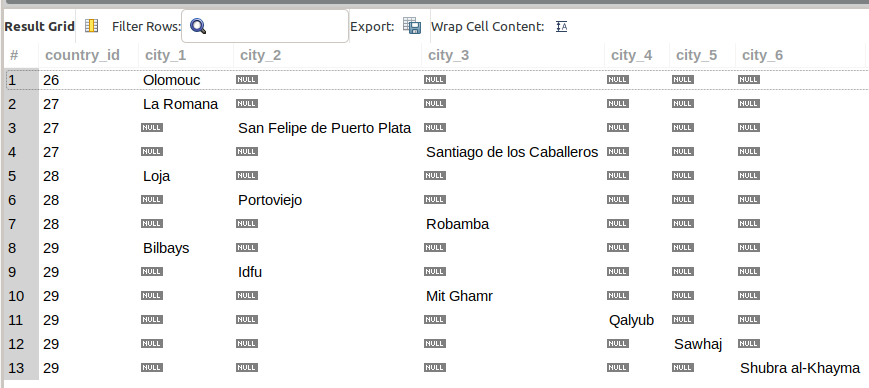

MySQL CASE expression
CASE expression and NULL values.

We are almost there with the query results we have so far. However, we need to further collapse the rows now into a single row per country_id value.


Do you need to learn MySQL? Just starting out and confused about how to query a table and get the data you need? I am creating premium MySQL Beginners content for this specific reason. To help those who want to learn the basics of MySQL but don't know where to start. Learn more about my premium MySQL blog posts and content as I develop and release them.

Tell me more!


Use Aggregate functions to collapse NULL rows

In order to collapse the multiple rows to a single row per group, we simply need to wrap each CASE expression in either the MAX() or MIN() aggregate function and GROUP BY the country_id value:

SELECT country_id,
MAX(CASE WHEN rn = 1 THEN city ELSE NULL END) AS city_1,
MAX(CASE WHEN rn = 2 THEN city ELSE NULL END) AS city_2,
MAX(CASE WHEN rn = 3 THEN city ELSE NULL END) AS city_3,
MAX(CASE WHEN rn = 4 THEN city ELSE NULL END) AS city_4,
MAX(CASE WHEN rn = 5 THEN city ELSE NULL END) AS city_5,
MAX(CASE WHEN rn = 6 THEN city ELSE NULL END) AS city_6
FROM data_set
GROUP BY country_id;

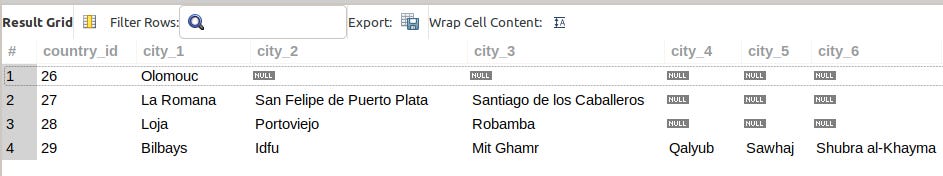

MySQL results set for single row groups
The final result set of multiple rows to single row per group

As shown in this similar query, replacing the MAX() aggregate function with MIN() yields the same results:

SELECT country_id,
MIN(CASE WHEN rn = 1 THEN city ELSE NULL END) AS city_1,
MIN(CASE WHEN rn = 2 THEN city ELSE NULL END) AS city_2,
MIN(CASE WHEN rn = 3 THEN city ELSE NULL END) AS city_3,
MIN(CASE WHEN rn = 4 THEN city ELSE NULL END) AS city_4,
MIN(CASE WHEN rn = 5 THEN city ELSE NULL END) AS city_5,
MIN(CASE WHEN rn = 6 THEN city ELSE NULL END) AS city_6
FROM data_set
GROUP BY country_id;

MIN() aggregate function returns the same query results.
